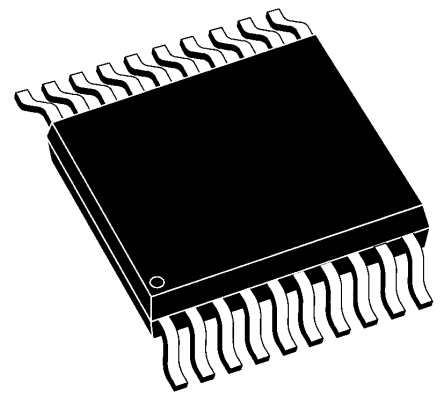

ADG1334BRSZ Analog Devices, Analogue Switch Quad SPDT, 12 V, 20-Pin SSOP [ADG1334BRSZ]; 709-7613
0₫
Mã kho: 7097613
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Quad SPDT |
| Package Type | SSOP |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 12 V |
| Switch Type | Analogue |
| Pin Count | 20 |
| Power Supply Type | Dual, Single |
| Input Signal Type | Single Ended |
| Output Signal Type | Differential |
| Typical Dual Supply Voltage | ±15V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +105 °C |
| Number of Channels per Chip | 4 |
| Length | 7.2mm |
| Dimensions | 7.2 x 5.3 x 1.75mm |
| Width | 5.3mm |
| Height | 1.75mm |
