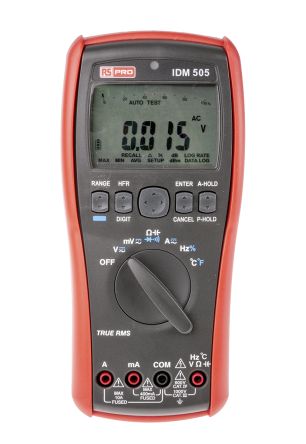

RS PRO IDM505 Handheld Digital Multimeter, 10A ac 1000V ac 10A dc 1000V dc; 124-1960
by RS PRO
0₫
Mã kho: 1241960
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Resistance Measurement | 40MΩ |
| Absolute Maximum Temperature Measurement | +1200°C |
| Absolute Maximum Capacitance Measurement | 40mF |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance, Temperature |
| True RMS | Yes |
| Maximum Frequency | 4MHz |
| Display Type | LCD |
| Model Number p | IDM505 |
| DC Current Measurement Resolution | 0.1µA dc |
| AC Current Measurement Resolution | 0.1µA ac |
| DC Voltage Measurement Resolution | 0.0001mV dc |
| Resistance Measurement Resolution | 10mΩ |
| AC Voltage Measurement Resolution | 0.001mV ac |
| Capacitance Measurement Resolution | 0.01nF |
| Temperature Measurement Resolution | 0.1°C |
| Safety Category Voltage | 600 V, 1000 V |
| Battery Type | 1.5 V AA Alkaline (NEDA 15A) |
| Best Resistance Measurement Accuracy | ±0.025 % + 30 Digit |
| Maximum Operating Temperature | +50°C |
| Best Temperature Measurement Accuracy | ±1 % + 1 °C |
| Best AC Voltage Accuracy | ±0.4 % + 50 Digit |
| Best DC Current Accuracy | ±0.1 % + 4 Digit |
| Minimum Operating Temperature | 0°C |
| Height | 200mm |
| Battery Life | 100 h |
| Weight | 620 (with Holster)g |
| Safety Category Level | CAT III, CAT IV |
| Best Capacitance Measurement Accuracy | ±0.8 % + 2 Digit |
| Best DC Voltage Accuracy | ±0.015 % + 20 Digit |
| Length | 95mm |
| Width | 51.2mm |
| Best AC Current Accuracy | ±0.7 % + 80 Digit |
| Dimensions | 95 x 51.2 x 200mm |
