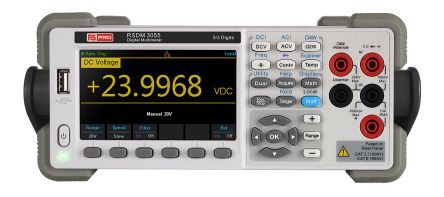

RS PRO RSDM3055A Bench Digital Multimeter, 10A ac 750V ac 10A dc 1000V dc; 123-6466
by RS PRO
0₫
Mã kho: 1236466
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Bench |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum AC Voltage Measurement | 750V ac |
| Absolute Maximum Resistance Measurement | 100MΩ |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Capacitance Measurement | 10mF |
| Absolute Maximum Temperature Measurement | +400 (T) °C, +660 (RTD) °C, +1000 (E) °C, +1200 (J) °C, +1300 (N) °C, +1370 (K) °C, +1760 (R) °C, +1760 (S) °C, +1820 (B) °C |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Period, Resistance, Temperature |
| True RMS | Yes |
| Maximum Frequency | 1MHz |
| Display Type | LCD |
| Model Number p | RSDM3055A |
| Safety Category Level | CAT I, CAT II |
| Weight | 3.3kg |
| Best Resistance Measurement Accuracy | 0.0002 |
| Best Temperature Measurement Accuracy | 0.16 (RTD) °C, 0.5 (E) °C, 0.5 (J) °C, 0.5 (K) °C, 0.5 (N) °C, 0.5 (R) °C, 0.5 (T) °C, 0.6 (S) °C, 0.76 (B) °C |
| Length | 282mm |
| Width | 260mm |
| Height | 105mm |
| Best AC Current Accuracy | 0.005 |
| Best DC Voltage Accuracy | 0.00015 |
| Best Capacitance Measurement Accuracy | 0.01 |
| Best AC Voltage Accuracy | 0.002 |
| Dimensions | 282 x 260 x 105mm |
| Safety Category Voltage | 600 V, 1000 V |
| Best DC Current Accuracy | 0.00055 |
