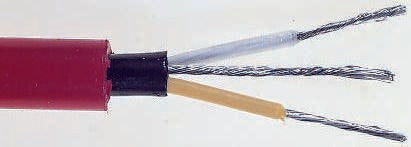

RS PRO 100m 2 Core Screened Red Microphone Cable, 60 V, 6.6mm od; 783-2807
by RS PRO
0₫
Mã kho: 7832807
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2 |
| Screened/Unscreened | Screened |
| Insulation Material | PE |
| Outer Diameter | 6.6mm |
| Reel Length | 100m |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
| Screen Type | Tinned Copper Braid |
| Drain Wire | Yes |
| Capacitance Core To Core | 165pF/m |
| Size of Strands | 0.12 mm |
| Number of Strands | 32 |
| Conductor Material | Tinned Copper |
| Core Strands | 32/0.12 mm |
| Conductor Strand Type | Stranded |
| Conductor Resistance | 55.5 Ω/km |
| Sheath Material | Polyvinyl Chloride PVC |
| Sheath Colour | Red |
| Voltage Rating | 60 V |
| Cable Shape | Multicore |
| Length | 100m |
