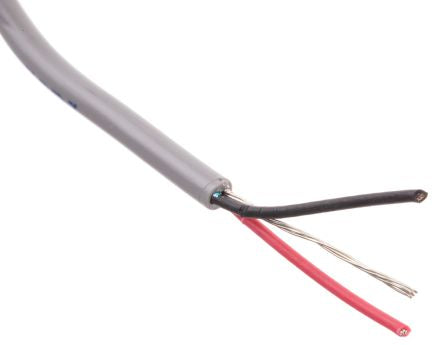

Belden 152m 2 Core Screened Grey Instrument Cable, 300 V, 3.43mm od , 0.33 mm² CSA [9451 008500]; 207-4716
by Belden
0₫
Mã kho: 2074716
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2 |
| Cross Sectional Area | 0.33 mm² |
| Screened/Unscreened | Screened |
| Insulation Material | PP |
| Outer Diameter | 3.43mm |
| Reel Length | 152m |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +75°C |
| Size of Strands | 30 AWG |
| Sheath Colour | Grey |
| Core Strands | 44042 |
| Cable Shape | Multicore |
| Standards Met | Euroclass Eca |
| Length | 152m |
| Current Rating | 2.9 A |
| Conductor Resistance | 46.259844 Ω/km |
| Capacitance Core To Core | 114.8pF/m |
| Capacitance Core To Screen | 219.76pF/m |
| American Wire Gauge | 22 AWG |
| Sheath Material | Polyvinyl Chloride PVC |
| Characteristic Impedance | 45 Ω |
| Number of Strands | 7 |
| Conductor Material | Copper |
| Conductor Strand Type | Stranded |
| Voltage Rating | 300 V |
| Screen Type | Aluminium/PET Foil |
| Drain Wire | Yes |
