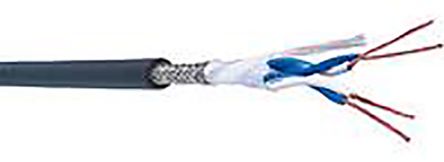

Belden 152m 4 Core Screened Black Microphone Cable, 100 V, 2.92mm od , 0.08 mm² CSA [1804A J5C500]; 552-918
by Belden
0₫
Mã kho: 552918
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 0.08 mm² |
| Screened/Unscreened | Screened |
| Insulation Material | PP |
| Outer Diameter | 2.92mm |
| Reel Length | 152m |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +60°C |
| Conductor Material | Copper |
| Conductor Strand Type | Stranded |
| Voltage Rating | 100 V |
| Size of Strands | 40 AWG |
| Core Strands | 19/40 |
| Screen Type | Tinned Copper Braid |
| Sheath Colour | Black |
| Number of Strands | 19 |
| Capacitance Core To Core | 131.2pF/m |
| Current Rating | 1.45 A |
| Conductor Resistance | 213.2546 Ω/km |
| Sheath Material | Polyvinyl Chloride PVC |
| Characteristic Impedance | 40 Ω |
| American Wire Gauge | 28 AWG |
| Cable Shape | Multicore |
| Length | 152m |
