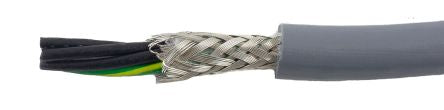

Alpha Wire 5 Conductor Braid Industrial Cable 0.24 mm²(CE, CSA, UL) Grey 30m Reel, EcoFlex PUR Series [80110 SL005]; 136-8466
by Alpha Wire
0₫
Mã kho: 1368466
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 5 |
| Cross Sectional Area | 0.24 mm² |
| Screened/Unscreened | Screened |
| Length | 30m |
| Sheath Colour | Grey |
| American Wire Gauge | 24 AWG |
| Outer Diameter | 5.54mm |
| Screen Type | Braid |
| Maximum Operating Temperature | +90°C |
| Core Strands | 19/0.127 mm |
| Sheath Material | Polyurethane PUR |
| Voltage Rating | 600 V |
| Fire Behaviour | Halogen Free |
| Series | EcoFlex PUR |
| Minimum Operating Temperature | -50°C |
| Insulation Material | MPPE |
| Minimum Bend Radius | 4 x Diameter |
| Conductor Resistance | 24.2 Ω/1000ft |
| Standards Met | CE, CSA, UL |
| Drain Wire | No |
| Conductor Material | Tinned Copper |
