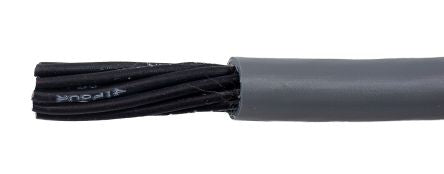

Alpha Wire 12 Conductor Unscreened Industrial Cable 0.5 mm²(CE, CSA, UL) Grey 30m Reel, EcoFlex PUR Series [80026 SL005]; 890-4531
by Alpha Wire
0₫
Mã kho: 8904531
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 12 |
| Cross Sectional Area | 0.5 mm² |
| Screened/Unscreened | Unscreened |
| Length | 30m |
| Sheath Colour | Grey |
| American Wire Gauge | 20 AWG |
| Outer Diameter | 7.54mm |
| Screen Type | Unscreened |
| Maximum Operating Temperature | +90°C |
| Core Strands | 26/0.16 mm |
| Sheath Material | Polyurethane PUR |
| Voltage Rating | 600 V |
| Fire Behaviour | Halogen Free |
| Minimum Operating Temperature | -50°C |
| Series | EcoFlex PUR |
| Insulation Material | MPPE |
| Conductor Resistance | 11.3 Ω/1000ft |
| Drain Wire | No |
| Conductor Material | Tinned Copper |
| Minimum Bend Radius | 4 x Diameter |
| Standards Met | CE, CSA, UL |
