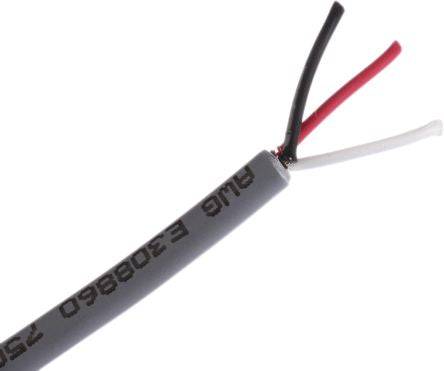

Alpha Wire 3 Conductor Unscreened Industrial Cable 0.35 mm²(CE, CSA, UL) Grey 30m Reel, Alpha Essentials Series [1173L SL005]; 673-3232
by Alpha Wire
0₫
Mã kho: 6733232
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 0.35 mm² |
| Screened/Unscreened | Unscreened |
| Length | 30m |
| Sheath Colour | Grey |
| American Wire Gauge | 22 AWG |
| Outer Diameter | 4.01mm |
| Screen Type | Unscreened |
| Maximum Operating Temperature | +80°C |
| Core Strands | 7/0.25 mm |
| Sheath Material | Low Smoke Zero Halogen (LSZH) |
| Voltage Rating | 300 V |
| Fire Behaviour | Halogen Free |
| Standards Met | CE, CSA, UL |
| Minimum Operating Temperature | -20°C |
| Conductor Resistance | 53.48 Ω/km |
| Insulation Material | LSZH |
| Drain Wire | No |
| Conductor Material | Tinned Copper |
| Minimum Bend Radius | 10 x Diameter |
| Series | Alpha Essentials |
