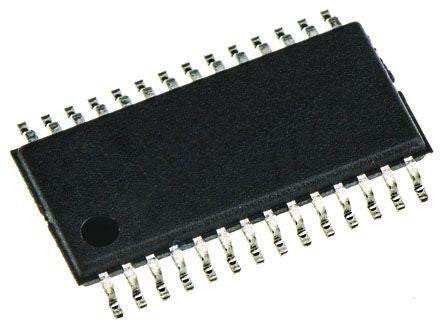

Texas Instruments DRV8829PWP, Stepper Motor Driver IC, 45 V 3.5A 28-Pin, HTSSOP [DRV8829PWP]; 162-8567
0₫
Mã kho: 1628567
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Motor Type | Stepper |
| Output Configuration | Full Bridge |
| Maximum IGBT Collector Current | 3.5A |
| Maximum Collector Emitter Voltage | 45 V |
| Mounting Type | Surface Mount |
| Package Type | HTSSOP |
| Pin Count | 28 |
| Maximum Operating Supply Voltage | 45 V |
| Minimum Operating Supply Voltage | 8.2 V |
| Typical Switching Frequency | 50kHz |
| Length | 9.8mm |
| Dimensions | 9.8 x 4.5 x 1.05mm |
| Height | 1.05mm |
| Width | 4.50mm |
| Maximum Operating Temperature | +80 °C |
| Minimum Operating Temperature | -40 °C |
