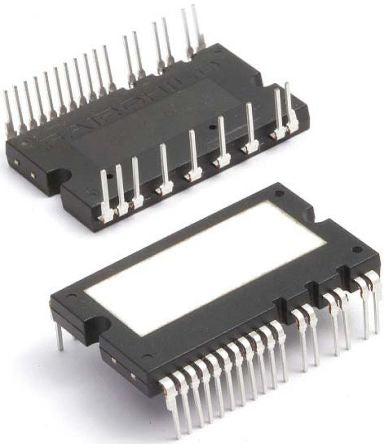

ON Semiconductor FNC42060F2, AC Induction Motor Driver IC, 600 V 20A 26-Pin, PDIP [FNC42060F2]; 864-9032
0₫
Mã kho: 8649032
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Motor Type | AC Induction |
| Output Configuration | 3 Phase |
| Maximum IGBT Collector Current | 20A |
| Maximum Collector Emitter Voltage | 600 V |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 26 |
| Maximum Operating Supply Voltage | 16.5 V |
| Minimum Operating Supply Voltage | 13.5 V |
| Typical Switching Frequency | 5kHz |
| Maximum Isolation Rating | 2000Vrms |
| Series | Motion SPM 45 Series |
| Dimensions | 39.5 x 23.5 x 4.8mm |
| Length | 39.5mm |
| Minimum Operating Temperature | -40 °C |
| Width | 23.5mm |
| Height | 4.8mm |
| Maximum Operating Temperature | +150 °C |
