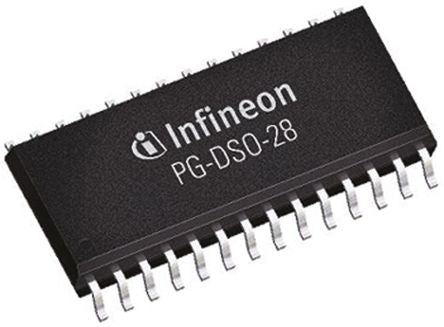

Quad D-MOS Switch DC Motor Driver DSO28 [BTM7740GXUMA1]; 145-8824
by Infineon
0₫
Mã kho: 1458824
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Motor Type | BLDC |
| Output Configuration | Full Bridge |
| Maximum IGBT Collector Current | 8A |
| Maximum Collector Emitter Voltage | 40 V |
| Mounting Type | Surface Mount |
| Package Type | DSO |
| Pin Count | 28 |
| Maximum Operating Supply Voltage | 42 V |
| Minimum Operating Supply Voltage | 1.8 V |
| Typical Switching Frequency | 1kHz |
| Minimum Operating Temperature | -40 °C |
| Width | 7.6mm |
| Maximum Operating Temperature | +150 °C |
| Height | 2.45mm |
| Automotive Standard | AEC-Q100 |
| Dimensions | 18.1 x 7.6 x 2.45mm |
| Length | 18.1mm |
