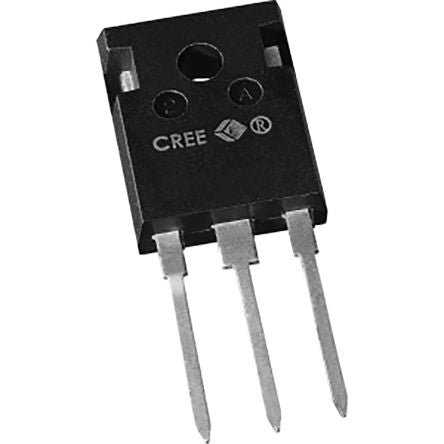

![Wolfspeed C2M0045170D 1923486](http://nguyenxuong.com/cdn/shop/products/Y1923486-01_444x444.jpg?v=1594379717)
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 72 A |
Maximum Drain Source Voltage | 1700 V |
Package Type | TO-247 |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 45 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 520 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -10 V, 25 V |
Number of Elements per Chip | 1 |
Height | 21.1mm |
Width | 5.21mm |
Minimum Operating Temperature | -40 °C |
Typical Gate Charge @ Vgs | 188 nC @ 5/20V |
Length | 16.13mm |
Transistor Material | SiC |
Maximum Operating Temperature | +150 °C |
