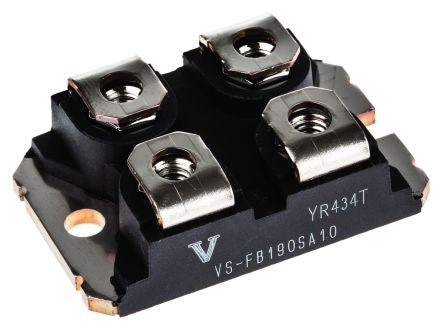

VS-FB190SA10 N-Channel MOSFET, 190 A, 100 V, 4-Pin SOT-227 Vishay [VS-FB190SA10]; 762-0153
by Vishay
0₫
Mã kho: 7620153
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 190 A |
Maximum Drain Source Voltage | 100 V |
Package Type | SOT-227 |
Mounting Type | Surface Mount |
Pin Count | 4 |
Maximum Drain Source Resistance | 6.5 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 568 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 250 nC @ 10 V |
Length | 38.3mm |
Height | 12.3mm |
Maximum Operating Temperature | +150 °C |
Width | 25.7mm |
Transistor Material | Si |
