![Vishay SUM50020E-GE3 1349701](http://nguyenxuong.com/cdn/shop/products/R1349701-01_444x320.jpg?v=1594181203)

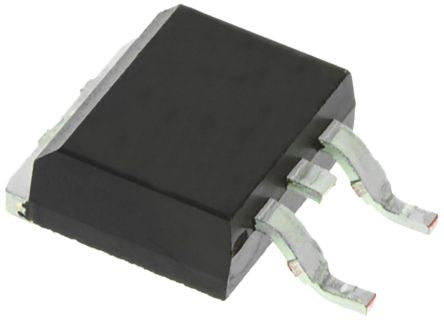

SUM50020E-GE3 N-Channel MOSFET, 120 A, 60 V, 8-Pin D2PAK Vishay [SUM50020E-GE3]; 134-9701
by Vishay
0₫
Mã kho: 1349701
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 120 A |
Maximum Drain Source Voltage | 60 V |
Package Type | D2PAK (TO-263) |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 2.6 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.5V |
Minimum Gate Threshold Voltage | 1.2V |
Maximum Power Dissipation | 375 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 126 nC @ 10 V |
Height | 4.82mm |
Maximum Operating Temperature | +175 °C |
Length | 10.41mm |
Forward Diode Voltage | 1.5V |
Minimum Operating Temperature | -55 °C |
Width | 9.65mm |
