N-Channel 40-V (D-S) MOSFET D2PAK (TO-26 [SUM40012EL-GE3]; 188-5088
by Vishay
0₫
Mã kho: 1885088
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 150 A |
Maximum Drain Source Voltage | 40 V |

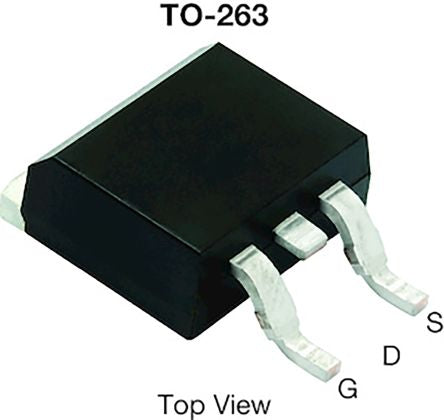

Package Type | TO-263 |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 2.2 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.5V |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 150 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±20 V |
Number of Elements per Chip | 1 |
Length | 10.41mm |
Width | 9.65mm |
Forward Diode Voltage | 1.5V |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +175 °C |
Height | 4.57mm |
Typical Gate Charge @ Vgs | 130 nC @ 10 V |
