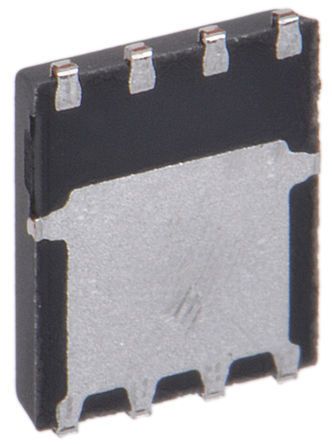

SQS460EN-T1_GE3 N-Channel MOSFET, 8 A, 60 V SQ Rugged, 8-Pin PowerPAK 1212 Vishay [SQS460EN-T1_GE3]; 787-9522
by Vishay
0₫
Mã kho: 7879522
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.333333333333333 |
| Maximum Drain Source Voltage | 60 V |
| Package Type | PowerPAK 1212 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 82 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1.5V |
| Maximum Power Dissipation | 39 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 3.4mm |
| Typical Gate Charge @ Vgs | 13 nC @ 10 V |
| Automotive Standard | AEC-Q101 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Series | SQ Rugged |
| Height | 1.12mm |
| Transistor Material | Si |
| Length | 3.4mm |
