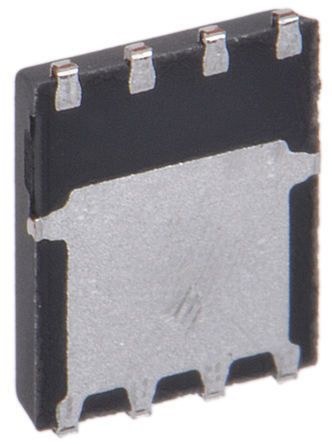

SIS406DN-T1-GE3 N-Channel MOSFET, 9 A, 30 V, 8-Pin PowerPAK 1212 Vishay [SIS406DN-T1-GE3]; 710-3418
by Vishay
0₫
Mã kho: 7103418
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.375 |
Maximum Drain Source Voltage | 30 V |
Package Type | PowerPAK 1212 |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 11 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 1.5 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -25 V, +25 V |
Number of Elements per Chip | 1 |
Length | 3.05mm |
Typical Gate Charge @ Vgs | 8.4 nC @ 4.5 V, 18.2 nC @ 10 V |
Width | 3.05mm |
Transistor Material | Si |
Maximum Operating Temperature | +150 °C |
Height | 1.04mm |
Minimum Operating Temperature | -55 °C |
