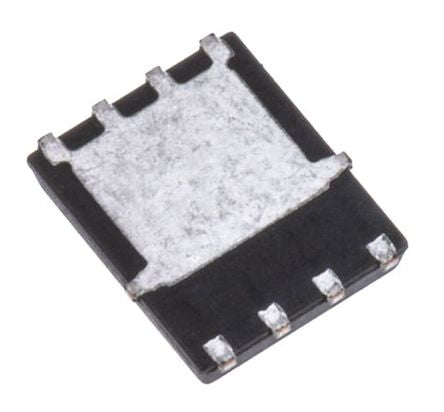

![Vishay SIR690DP-T1-RE3 1349162](http://nguyenxuong.com/cdn/shop/products/R1349162-01_444x412.jpg?v=1594050528)
SIR690DP-T1-RE3 N-Channel MOSFET, 34.4 A, 200 V, 8-Pin SO Vishay [SIR690DP-T1-RE3]; 134-9162
by Vishay
0₫
Mã kho: 1349162
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 34.4 A |
Maximum Drain Source Voltage | 200 V |
Package Type | SO |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 39 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 104 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Width | 5.26mm |
Forward Diode Voltage | 1.1V |
Length | 6.25mm |
Height | 1.12mm |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 31.9 nC @ 10 V |
