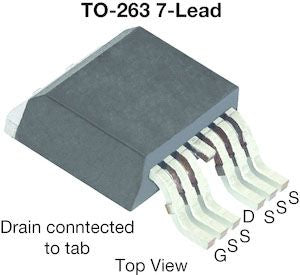

SQM40016EM_GE3 N-Channel MOSFET, 250 A, 40 V TrenchFET, 7 + Tab-Pin D2PAK Vishay Siliconix [SQM40016EM_GE3]; 178-3723
0₫
Mã kho: 1783723
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 250 A |
Maximum Drain Source Voltage | 40 V |
Package Type | D2PAK (TO-263) |
Mounting Type | Surface Mount |
Pin Count | 7 + Tab |
Maximum Drain Source Resistance | 1 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.5V |
Minimum Gate Threshold Voltage | 3.5V |
Maximum Power Dissipation | 300 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±20 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Width | 4.83mm |
Length | 10.67mm |
Maximum Operating Temperature | +175 °C |
Series | TrenchFET |
Height | 11.3mm |
Typical Gate Charge @ Vgs | 163 nC @ 10 V |
Transistor Material | Si |
Automotive Standard | AEC-Q101 |
Forward Diode Voltage | 1.5V |
