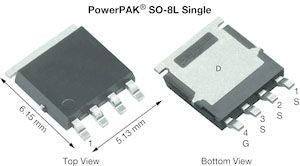

SQJ872EP-T1_GE3 N-Channel MOSFET, 24.5 A, 150 V TrenchFET, 8-Pin SO-8 Vishay Siliconix [SQJ872EP-T1_GE3]; 178-3903
0₫
Mã kho: 1783903
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 24.5 A |
| Maximum Drain Source Voltage | 150 V |
| Package Type | SO-8 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 80 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 3.5V |
| Maximum Power Dissipation | 55 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 5mm |
| Maximum Operating Temperature | +175 °C |
| Series | TrenchFET |
| Height | 1.07mm |
| Typical Gate Charge @ Vgs | 14 nC @ 10 V |
| Transistor Material | Si |
| Automotive Standard | AEC-Q101 |
| Forward Diode Voltage | 1.2V |
| Length | 5.99mm |
