SQA405EJ-T1_GE3 P-Channel MOSFET, 10 A, 40 V TrenchFET, 6-Pin SC-70 Vishay Siliconix [SQA405EJ-T1_GE3]; 178-3910
0₫
Mã kho: 1783910
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 0.416666666666667 |
| Maximum Drain Source Voltage | 40 V |

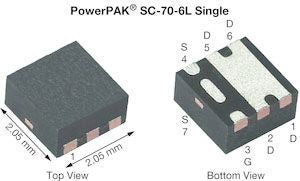

| Package Type | SC-70 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 80 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1.5V |
| Maximum Power Dissipation | 13.6 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Width | 1.35mm |
| Minimum Operating Temperature | -55 °C |
| Automotive Standard | AEC-Q101 |
| Typical Gate Charge @ Vgs | 26 nC @ 10 V |
| Height | 1mm |
| Series | TrenchFET |
| Maximum Operating Temperature | +175 °C |
| Length | 2.2mm |
| Forward Diode Voltage | 1.2V |
| Transistor Material | Si |
