SiS110DN-T1-GE3 N-Channel MOSFET, 14.2 A, 100 V TrenchFET, 8-Pin 1212 Vishay Siliconix [SiS110DN-T1-GE3]; 178-3693
0₫
Mã kho: 1783693
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 14.2 A |
| Maximum Drain Source Voltage | 100 V |

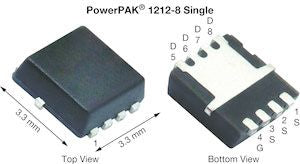

| Package Type | 1212 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 70 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 4V |
| Maximum Power Dissipation | 24 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 8.5 nC @ 10 V |
| Height | 1.07mm |
| Minimum Operating Temperature | -55 °C |
| Length | 3.15mm |
| Forward Diode Voltage | 1.2V |
| Transistor Material | Si |
| Series | TrenchFET |
| Width | 3.15mm |
