SiRA12BDP-T1-GE3 N-Channel MOSFET, 60 A, 30 V TrenchFET, 8-Pin SO-8 Vishay Siliconix [SiRA12BDP-T1-GE3]; 178-3689
0₫
Mã kho: 1783689
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 60 A |
| Maximum Drain Source Voltage | 30 V |

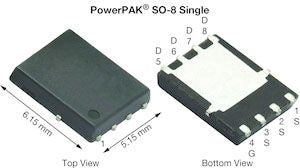

| Package Type | SO-8 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 6 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.2V |
| Minimum Gate Threshold Voltage | 2.4V |
| Maximum Power Dissipation | 38 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -16 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 5mm |
| Series | TrenchFET |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
| Forward Diode Voltage | 1.1V |
| Length | 5.99mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 21 nC @ 10 V |
| Height | 1.07mm |
