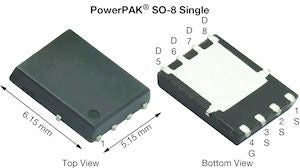

![Vishay Siliconix Si7172ADP-T1-RE3 1783865](http://nguyenxuong.com/cdn/shop/products/Y1783865-01_300x168.jpg?v=1594115852)
Si7172ADP-T1-RE3 N-Channel MOSFET, 17.2 A, 200 V TrenchFET, 8-Pin SO-8 Vishay Siliconix [Si7172ADP-T1-RE3]; 178-3865
0₫
Mã kho: 1783865
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 17.2 A |
Maximum Drain Source Voltage | 200 V |
Package Type | SO-8 |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 80 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 52 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±20 V |
Number of Elements per Chip | 1 |
Transistor Material | Si |
Forward Diode Voltage | 1.1V |
Length | 5.99mm |
Minimum Operating Temperature | -55 °C |
Width | 5mm |
Maximum Operating Temperature | +150 °C |
Series | TrenchFET |
Height | 1.07mm |
Typical Gate Charge @ Vgs | 19.5 nC @ 10 V |
