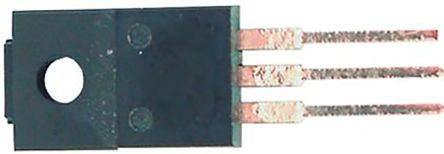

SIHF6N40D-E3 N-Channel MOSFET, 6 A, 400 V D Series, 3-Pin TO-220FP Vishay [SIHF6N40D-E3]; 145-1828
by Vishay
0₫
Mã kho: 1451828
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.25 |
Maximum Drain Source Voltage | 400 V |
Package Type | TO-220FP |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 1 Ω |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 30 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Transistor Material | Si |
Minimum Operating Temperature | -55 °C |
Width | 4.83mm |
Length | 10.63mm |
Typical Gate Charge @ Vgs | 9 nC @ 10 V |
Height | 9.8mm |
Series | D Series |
Maximum Operating Temperature | +150 °C |
