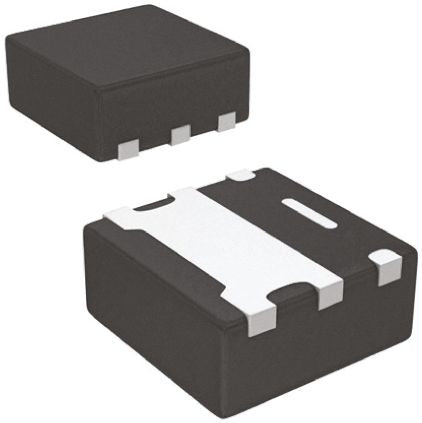

SIB456DK-T1-GE3 N-Channel MOSFET, 6.3 A, 100 V ThunderFET, 6-Pin PowerPAK SC-70 Vishay [SIB456DK-T1-GE3]; 165-6978
by Vishay
0₫
Mã kho: 1656978
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 6.3 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | PowerPAK SC-70 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 310 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1.6V |
| Maximum Power Dissipation | 13 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Series | ThunderFET |
| Height | 0.8mm |
| Width | 1.7mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 1.7mm |
| Typical Gate Charge @ Vgs | 3.3 nC @ 10 V |
