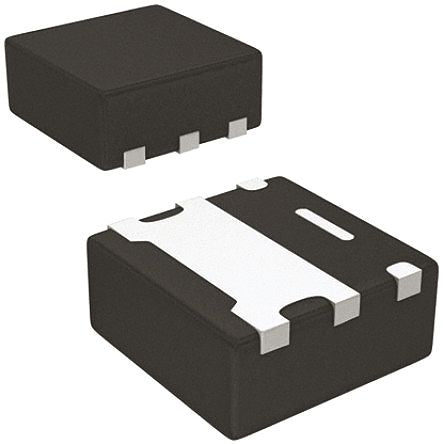

SIB452DK-T1-GE3 N-Channel MOSFET, 670 mA, 190 V, 6-Pin SC-75 Vishay [SIB452DK-T1-GE3]; 814-1253
by Vishay
0₫
Mã kho: 8141253
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 670 mA |
Maximum Drain Source Voltage | 190 V |
Package Type | SC-75 |
Mounting Type | Surface Mount |
Pin Count | 6 |
Maximum Drain Source Resistance | 6 Ω |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 0.6V |
Maximum Power Dissipation | 13 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -16 V, +16 V |
Number of Elements per Chip | 1 |
Length | 1.7mm |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Transistor Material | Si |
Typical Gate Charge @ Vgs | 4.3 nC @ 10 V |
Width | 1.7mm |
Height | 0.8mm |
