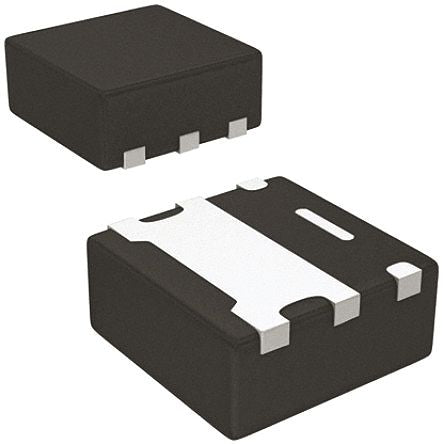

SIA462DJ-T1-GE3 N-Channel MOSFET, 12 A, 30 V, 6-Pin SOT-363 (SC-70) Vishay [SIA462DJ-T1-GE3]; 814-1222
by Vishay
0₫
Mã kho: 8141222
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0 |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOT-363 (SC-70) |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 22 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 19 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 2.15mm |
| Typical Gate Charge @ Vgs | 11 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Width | 2.15mm |
| Transistor Material | Si |
| Height | 0.8mm |
