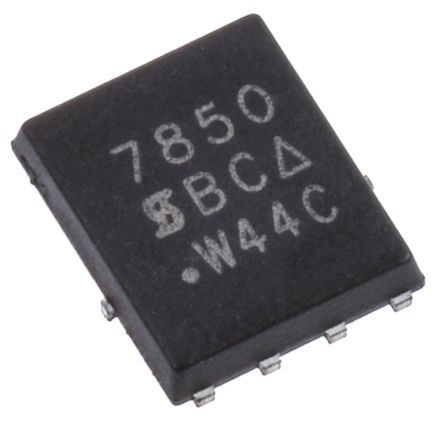

SI7850DP-T1-E3 N-Channel MOSFET, 6.2 A, 60 V, 8-Pin PowerPAK SO Vishay [SI7850DP-T1-E3]; 919-0830
by Vishay
0₫
Mã kho: 9190830
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 6.2 A |
Maximum Drain Source Voltage | 60 V |
Package Type | PowerPAK SO |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 22 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 1.8 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 18 nC @ 10 V |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Length | 4.9mm |
Height | 1.04mm |
Width | 5.89mm |
Transistor Material | Si |
