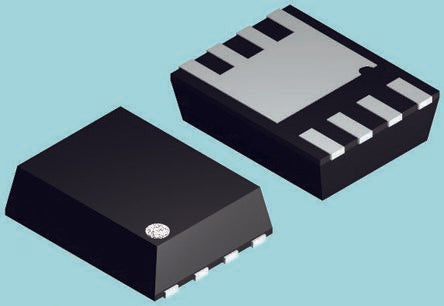

SI7164DP-T1-GE3 N-Channel MOSFET, 60 A, 60 V, 8-Pin PowerPAK SO Vishay [SI7164DP-T1-GE3]; 787-9529
by Vishay
0₫
Mã kho: 7879529
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 60 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | PowerPAK SO |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 6.25 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 104 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Length | 6.25mm |
| Maximum Operating Temperature | +150 °C |
| Width | 5.26mm |
| Typical Gate Charge @ Vgs | 49.5 nC @ 10 V |
| Transistor Material | Si |
| Height | 1.12mm |
