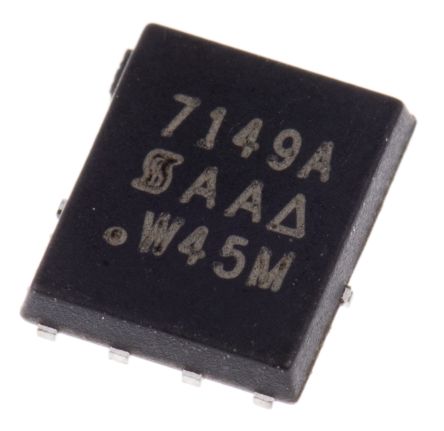

SI7149ADP-T1-GE3 P-Channel MOSFET, 18 A, 30 V, 8-Pin PowerPAK SO Vishay [SI7149ADP-T1-GE3]; 818-1393
by Vishay
0₫
Mã kho: 8181393
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 18 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | PowerPAK SO |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 9.5 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 48 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 5mm |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 90 nC @ 10 V |
| Length | 5.99mm |
| Maximum Operating Temperature | +150 °C |
| Height | 1.07mm |
