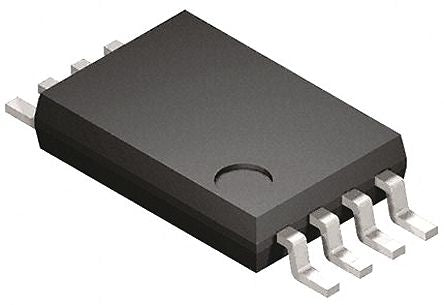

SI6954ADQ-T1-GE3 Dual N-Channel MOSFET, 3.1 A, 30 V, 8-Pin TSSOP Vishay [SI6954ADQ-T1-GE3]; 165-6336
by Vishay
0₫
Mã kho: 1656336
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 3.1 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 75 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 830 mW |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Height | 1.05mm |
| Width | 3.1mm |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 8 nC @ 10 V |
| Length | 4.5mm |
| Transistor Material | Si |
