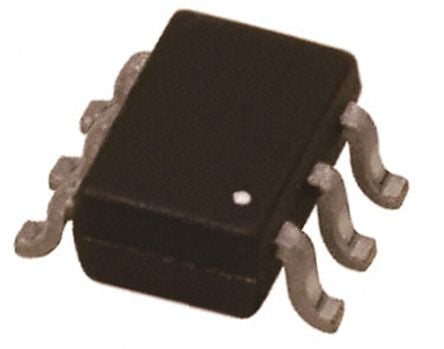

SI3993CDV-T1-GE3 Dual P-Channel MOSFET, 2.3 A, 30 V, 6-Pin TSOP Vishay [SI3993CDV-T1-GE3]; 812-3189
by Vishay
0₫
Mã kho: 8123189
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 2.3 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | TSOP |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 188 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 1.4 W |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 2 |
| Transistor Material | Si |
| Width | 1.7mm |
| Height | 1mm |
| Typical Gate Charge @ Vgs | 5.2 nC @ 10 V |
| Length | 3.1mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
