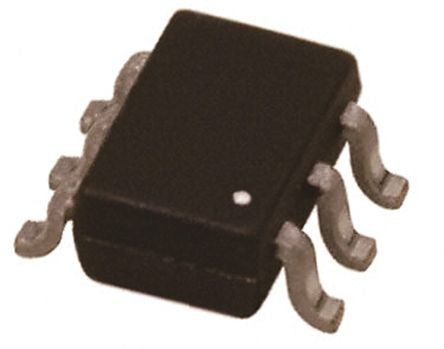

SI3499DV-T1-GE3 P-Channel MOSFET, 3.9 A, 8 V, 6-Pin TSOP Vishay [SI3499DV-T1-GE3]; 812-3173
by Vishay
0₫
Mã kho: 8123173
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 3.9 A |
Maximum Drain Source Voltage | 8 V |
Package Type | TSOP |
Mounting Type | Surface Mount |
Pin Count | 6 |
Maximum Drain Source Resistance | 48 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 0.35V |
Maximum Power Dissipation | 1.1 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -5 V, +5 V |
Number of Elements per Chip | 1 |
Height | 1mm |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Length | 3.1mm |
Typical Gate Charge @ Vgs | 28 nC @ 4.5 V |
Width | 1.7mm |
Transistor Material | Si |
