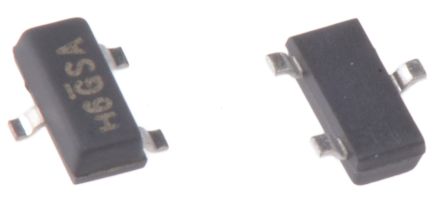

SI2366DS-T1-GE3 N-Channel MOSFET, 5.8 A, 30 V, 3-Pin SOT-23 Vishay [SI2366DS-T1-GE3]; 812-3132
by Vishay
0₫
Mã kho: 8123132
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 5.8 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 42 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 2.1 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 3.04mm |
| Typical Gate Charge @ Vgs | 6.4 nC @ 10 V |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Height | 1.02mm |
| Width | 1.4mm |
