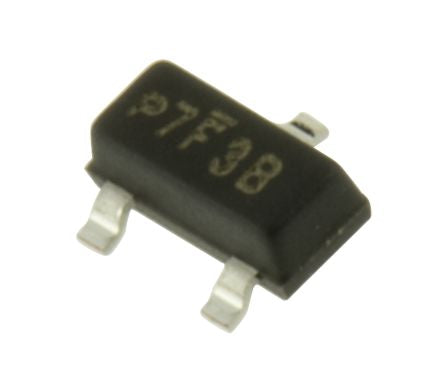

SI2319CDS-T1-GE3 P-Channel MOSFET, 4.4 A, 40 V, 3-Pin SOT-23 Vishay [SI2319CDS-T1-GE3]; 787-9042
by Vishay
0₫
Mã kho: 7879042
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 4.4 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 108 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 2.5 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 3.04mm |
| Typical Gate Charge @ Vgs | 13.6 nC @ 10 V |
| Height | 1.02mm |
| Width | 1.4mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
