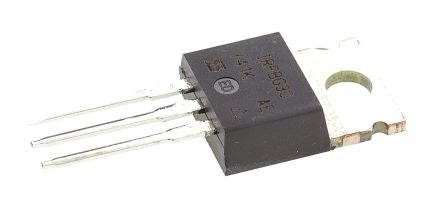

IRFBG30PBF N-Channel MOSFET, 3.1 A, 1000 V, 3-Pin TO-220AB Vishay [IRFBG30PBF]; 541-1146
by Vishay
0₫
Mã kho: 5411146
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 3.1 A |
Maximum Drain Source Voltage | 1000 V |
Package Type | TO-220AB |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 5 Ω |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 125 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Maximum Operating Temperature | +150 °C |
Height | 9.01mm |
Typical Gate Charge @ Vgs | 80 nC @ 10 V |
Minimum Operating Temperature | -55 °C |
Transistor Material | Si |
Length | 10.41mm |
Width | 4.7mm |
