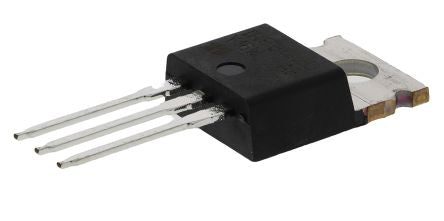

IRFBG20PBF N-Channel MOSFET, 1.4 A, 1000 V, 3-Pin TO-220AB Vishay [IRFBG20PBF]; 542-9563
by Vishay
0₫
Mã kho: 5429563
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 1.4 A |
Maximum Drain Source Voltage | 1000 V |
Package Type | TO-220AB |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 11 Ω |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 54 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Transistor Material | Si |
Width | 4.7mm |
Length | 10.41mm |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 38 nC @ 10 V |
Minimum Operating Temperature | -55 °C |
Height | 9.01mm |
