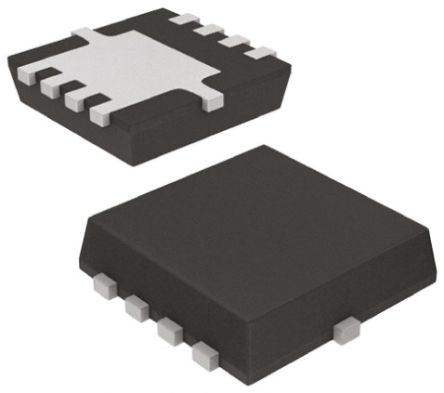

TPH4R606NH N-Channel MOSFET, 85 A, 60 V TPH, 8-Pin SOP Advanced Toshiba [TPH4R606NH]; 796-5140
by Toshiba
0₫
Mã kho: 7965140
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 85 A |
Maximum Drain Source Voltage | 60 V |
Package Type | SOP Advanced |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 11 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Maximum Power Dissipation | 63 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Width | 5mm |
Height | 0.95mm |
Length | 5mm |
Maximum Operating Temperature | +150 °C |
Transistor Material | Si |
Typical Gate Charge @ Vgs | 49 nC @ 10 V |
Series | TPH |
