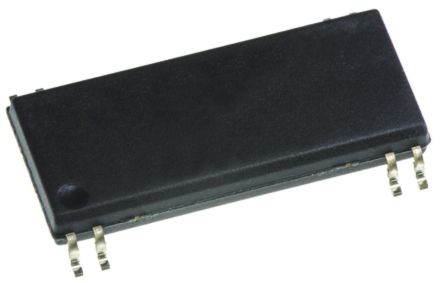

TPH4R50ANH N-Channel MOSFET, 93 A, 100 V, 8-Pin SOP Toshiba [TPH4R50ANH]; 171-2377
by Toshiba
0₫
Mã kho: 1712377
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 93 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | SOP |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 4.5 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 78 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Width | 5mm |
| Typical Gate Charge @ Vgs | 58 nC @ 10 V |
| Length | 5mm |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.2V |
| Height | 0.95mm |
