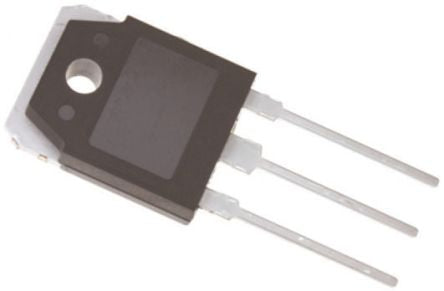

TK62J60W,S1VQ(O N-Channel MOSFET, 62 A, 600 V TK, 3-Pin TO-3PN Toshiba [TK62J60W,S1VQ(O]; 168-7987
by Toshiba
0₫
Mã kho: 1687987
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 62 A |
| Maximum Drain Source Voltage | 600 V |
| Package Type | TO-3PN |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 40 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.7V |
| Maximum Power Dissipation | 400 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Length | 15.5mm |
| Transistor Material | Si |
| Height | 20mm |
| Width | 4.5mm |
| Maximum Operating Temperature | +150 °C |
| Series | TK |
| Typical Gate Charge @ Vgs | 180 nC @ 10 V |
