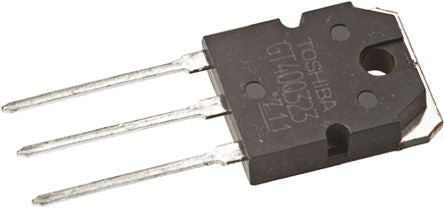

TK39J60W5,S1VQ(O N-Channel MOSFET, 39 A, 600 V DTMOSIV, 3-Pin TO-3PN Toshiba [TK39J60W5,S1VQ(O]; 799-5135
by Toshiba
0₫
Mã kho: 7995135
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 39 A |
| Maximum Drain Source Voltage | 600 V |
| Package Type | TO-3PN |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 74 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.7V |
| Maximum Power Dissipation | 270 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 135 nC @ 10 V |
| Height | 20mm |
| Transistor Material | Si |
| Series | DTMOSIV |
| Length | 15.5mm |
| Maximum Operating Temperature | +150 °C |
| Width | 4.5mm |
