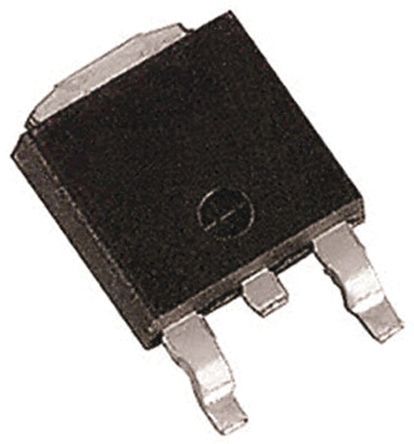

TK33S10N1Z N-Channel MOSFET, 33 A, 100 V, 3-Pin DPAK Toshiba [TK33S10N1Z]; 171-2530
by Toshiba
0₫
Mã kho: 1712530
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 33 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | DPAK |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 9.7 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 125 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 28 nC @ 10 V |
| Length | 6.5mm |
| Automotive Standard | AEC-Q101 |
| Height | 2.3mm |
| Maximum Operating Temperature | +175 °C |
| Width | 7mm |
| Forward Diode Voltage | 1.2V |
