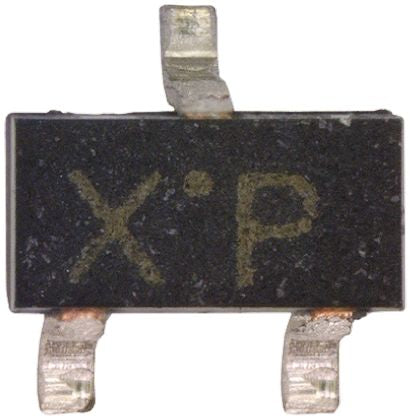

SSM3K15FS(TE85L,F) N-Channel MOSFET, 100 mA, 30 V SSM3, 3-Pin SSM Toshiba [SSM3K15FS(TE85L,F)]; 639-5562
by Toshiba
0₫
Mã kho: 6395562
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 100 mA |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SSM |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 7 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.5V |
| Maximum Power Dissipation | 100 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 0.8mm |
| Length | 1.6mm |
| Maximum Operating Temperature | +150 °C |
| Height | 0.7mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Series | SSM3 |
