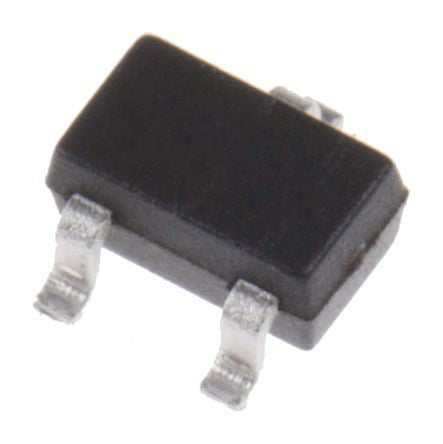

SSM3K09FU N-Channel MOSFET, 400 mA, 30 V, 3-Pin SOT-323 Toshiba [SSM3K09FU]; 171-2534
by Toshiba
0₫
Mã kho: 1712534
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 400 mA |
Maximum Drain Source Voltage | 30 V |
Package Type | SOT-323 |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 1.7 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1.8V |
Minimum Gate Threshold Voltage | 1.1V |
Maximum Power Dissipation | 150 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±20 V |
Number of Elements per Chip | 1 |
Width | 2mm |
Length | 1.25mm |
Maximum Operating Temperature | +150 °C |
Height | 0.9mm |
