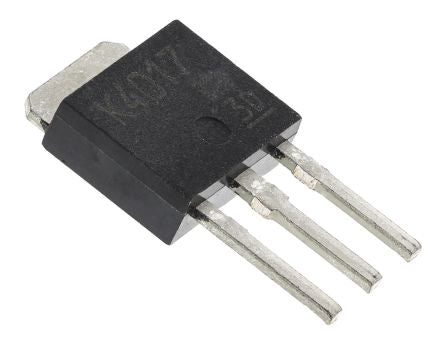

2SK4017(Q) N-Channel MOSFET, 5 A, 60 V 2SK, 3-Pin PW Mold2 Toshiba [2SK4017(Q)]; 185-580
by Toshiba
0₫
Mã kho: 185580
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.208333333333333 |
Maximum Drain Source Voltage | 60 V |
Package Type | PW Mold2 |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 100 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.5V |
Maximum Power Dissipation | 20 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 15 nC @ 10 V |
Length | 6.5mm |
Series | 2SK |
Height | 5.5mm |
Width | 2.3mm |
Transistor Material | Si |
