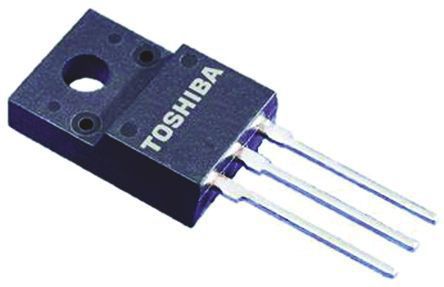

2SK3564,S5Q(J N-Channel MOSFET, 3 A, 900 V 2SK, 3-Pin SC-67 Toshiba [2SK3564,S5Q(J]; 890-2686
by Toshiba
0₫
Mã kho: 8902686
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.125 |
| Maximum Drain Source Voltage | 900 V |
| Package Type | SC-67 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 4.3 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Maximum Power Dissipation | 40 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 17 nC @ 10 V |
| Series | 2SK |
| Height | 15mm |
| Transistor Material | Si |
| Width | 4.5mm |
| Forward Diode Voltage | 1.9V |
| Length | 10mm |
