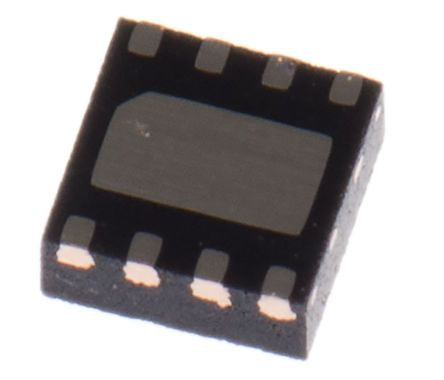

CSD87350Q5D Dual N-Channel MOSFET Module, 120 A, 30 V NexFET, 8-Pin SON Texas Instruments [CSD87350Q5D]; 827-4943
0₫
Mã kho: 8274943
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 120 A |
Maximum Drain Source Voltage | 30 V |
Package Type | SON |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 1.2 mΩ, 5 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.1V |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 12 W |
Transistor Configuration | Series |
Maximum Gate Source Voltage | +8 V |
Number of Elements per Chip | 2 |
Maximum Operating Temperature | +150 °C |
Length | 6.1mm |
Typical Gate Charge @ Vgs | 8.4 nC @ 4.5 V, 20 nC @ 4.5 V |
Height | 1.5mm |
Width | 5.1mm |
Transistor Material | Si |
Series | NexFET |
Minimum Operating Temperature | -55 °C |
