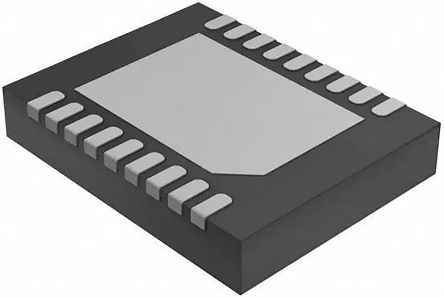

CSD19502Q5BT N-Channel MOSFET, 157 A, 80 V NexFET, 8-Pin VSON-CLIP Texas Instruments [CSD19502Q5BT]; 168-4940
0₫
Mã kho: 1684940
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 157 A |
| Maximum Drain Source Voltage | 80 V |
| Package Type | VSON-CLIP |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 4.8 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.3V |
| Minimum Gate Threshold Voltage | 2.2V |
| Maximum Power Dissipation | 195 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 5.1mm |
| Forward Diode Voltage | 1V |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Series | NexFET |
| Height | 1.05mm |
| Typical Gate Charge @ Vgs | 130 nC |
| Length | 6.1mm |
